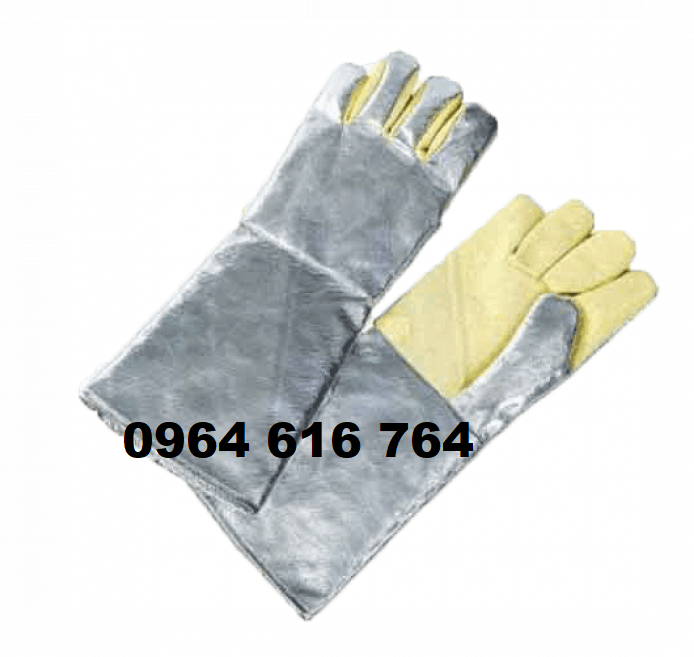

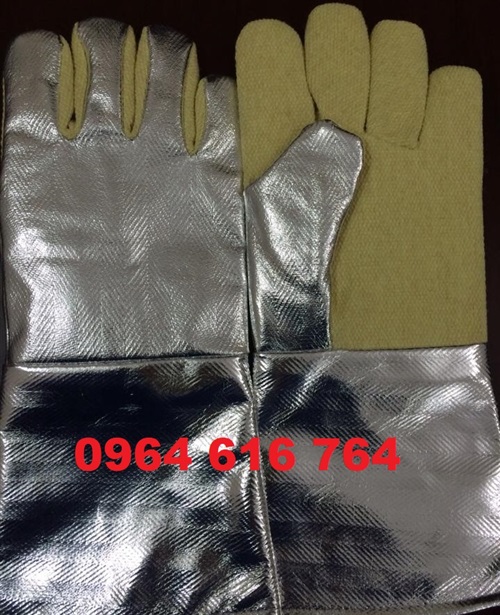

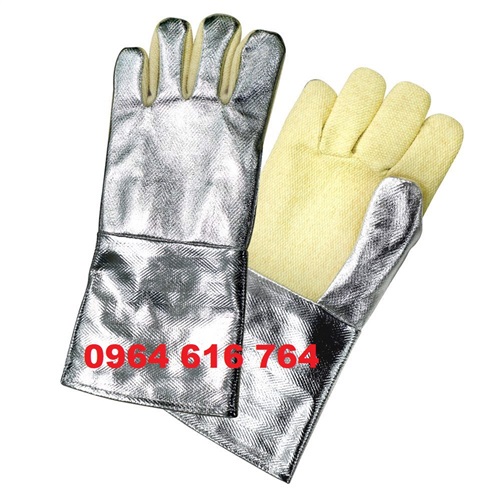

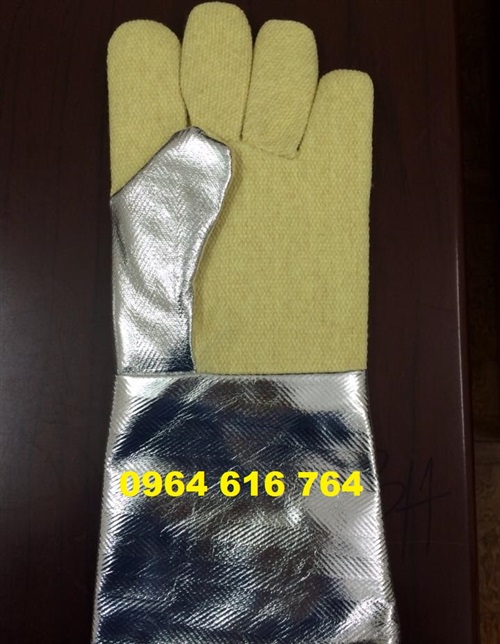

Găng tay chịu nhiệt AL165:
- Mã sản phẩm: AL165
- Chất liệu: Kết hợp sợi dệt của sợi aramid cùng với sợi thủy tinh, 1 mặt nhôm cán phủ.
- Cỡ: 11 (loại 5 ngón)
- Độ dài: 16"
Tính năng:
- Găng tay chịu nhiệt BLUE EAGLE ® AL145, AL165 and AL205 bảo vệ người tiêu dùng các tác nhân như: cháy, tiếp xúc nhiệt, sức nóng đối lưu, bức xạ nhiệt và sự nóng chảy của các kim loại nhỏ.
3 loại cỡ:
- AL145 (14" or 36 cm), AL165 (16" or 40 cm), AL205 (20" or 50 cm)
- Tiêu chuẩn CE EN407 and EN388.
- Sản phẩm của tập đoàn Blue Eagle - Đài Loan.
** EN 407 - Protective gloves against thermal risks **
1. Burning behaviour (Performance level 4)
The burner is placed below the glove so that it is in a plane with the vertical middle line of the glove or the middle finger and is perpendicular to the surface of the glove. The burner is mounted at an angle of 30 degrees to the vertical. The distance between the tip of the burner and the lower edge of the glove or the middle finger shall be 20 mm.
Glove shall be tested for each ignition time, i.e. 3 s and 15 s. The after flame time and after glow time shall be recorded for each ignition time.
|
Performance
Level
|
After flame time
(sec)
|
After glow time
(sec)
|
|
1
|
< 20
|
No requirement
|
|
2
|
< 10
|
< 120
|
|
3
|
< 3
|
< 25
|
|
4
|
< 2
|
< 5
|
2. Contact heat (Performance level 2)
Apply a force on the glove to contact a heated surface with certain temperature (100°C, 250°C, 350°C, or 500°C). Measure and record how long will the temperature on the other side of the glove raise 10°C, i.e. measure and record how long will user’s hand raise 10°C). At each level, the threshold time must be more than 15 s.
|
Performance
Level
|
Contact temperature
(°C)
|
Threshold time
(sec)
|
|
1
|
100
|
> 15
|
|
2
|
250
|
> 15
|
|
3
|
350
|
> 15
|
|
4
|
500
|
> 15
|
3. Convective heat (Performance level 3)
Position the glove sample on a support stand and place a burner below it. Ignite the burner, measure and record how long will the temperature on the other side of the glove raise 24°C, i.e. measure and record how long will user’s hand raise 24°C
|
Performance
Level
|
Heat transfer index HTI
(sec)
|
|
1
|
> 4
|
|
2
|
> 7
|
|
3
|
> 10
|
|
4
|
> 18
|
4. Radiant heat (Performance level 4)
Position the glove sample on a support stand and place a radiant heat source in front of it. After open the radiant heat source, measure and record how long will the temperature on the other side of the glove raise 24°C, i.e. measure and record how long will user’s hand raise 24°C
|
Performance
Level
|
Heat transfer T24
(sec)
|
|
1
|
> 7
|
|
2
|
> 20
|
|
3
|
> 50
|
|
4
|
> 95
|
5. Small splashes of molten metal (Performance level 3)
Let molten metal drops on the glove. Measure and record how many drops will the temperature on the other side of the glove raise 40°C, i.e. measure and record how long will user’s hand raise 40°C
|
Performance
Level
|
Number of molten metal droplets
|
|
1
|
> 10
|
|
2
|
> 15
|
|
3
|
> 25
|
|
4
|
> 35
|
** EN 388 - Protective gloves against mechanical risks **
1. Abrasion resistance (Performance level 4)
2. Blade cut resistance (Performance level 5)
3. Tear resistance (Performance level 4)
4. Puncture resistance (Performance level 2)
|
Test
|
Level 1
|
Level 2
|
Level 3
|
Level 4
|
Level 5
|
|
Abrasion resistance
(number of cycles)
|
100
|
500
|
2000
|
8000
|
-
|
|
Blade cut resistance (index)
|
1.2
|
2.5
|
5.0
|
10.0
|
20.0
|
|
Tear resistance (N)
|
10
|
25
|
50
|
75
|
-
|
|
Puncture resistance (N)
|
20
|
60
|
100
|
150
|
-
|
